List of Key Product Offerings
Hydraulic Actuators

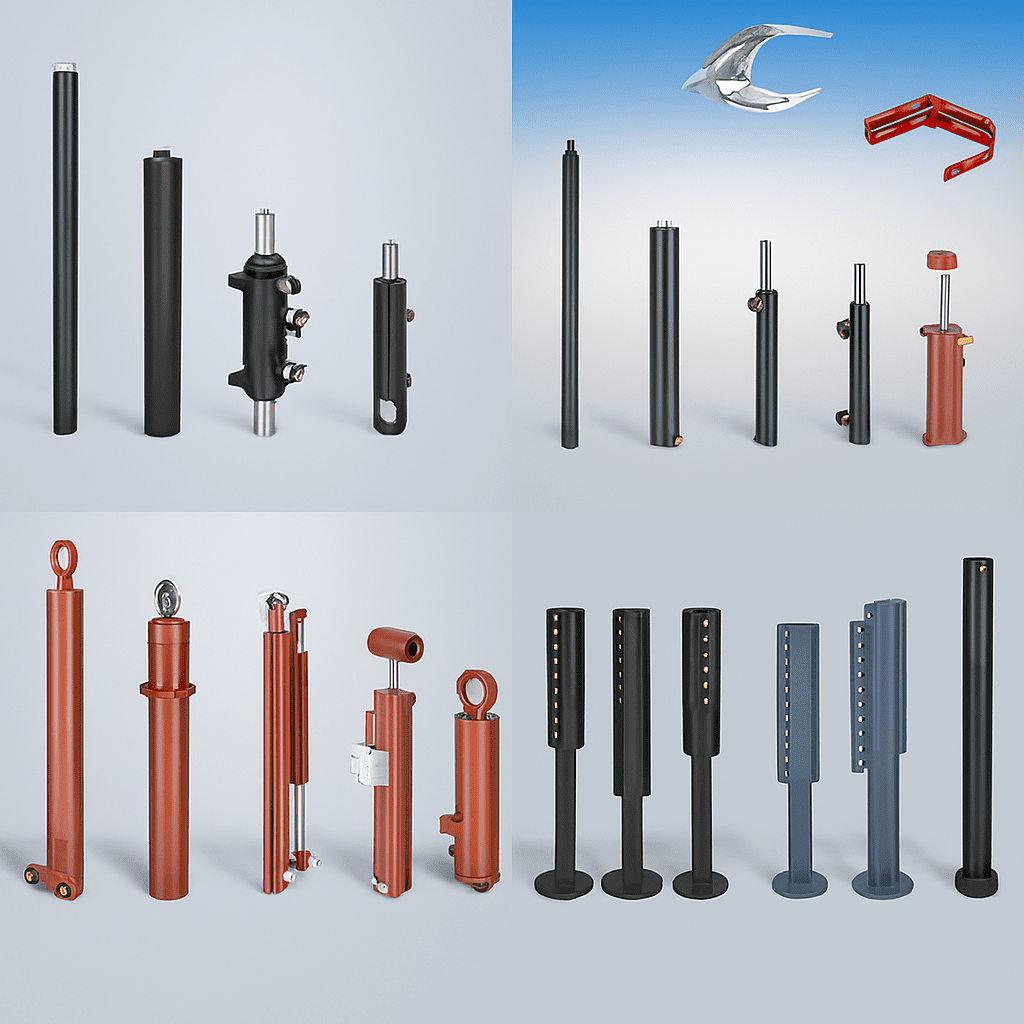

Linear Cylinder Overview
Linear cylinders are manufactured by Malaysia-based United Hydraulic Sdn. Bhd., which has the capability to produce hydraulic cylinders within the following range:
- Pressure max: 450 bar
- Piston diameter: 500 mm max
- Stroke: 8000 mm max
- Weight: 1000kg max/cylinder
- Rolling diameter for machining: 350mm max
- Material options:
- Carbon steels
- Stainless steels
- Alloyed/special steels and forging of specified steels
- Seal Selections are major international brands or per customer’s request, including Hallite, NOK, Parker, Trelleborg, SKF, and Simrit-Freuedenberg

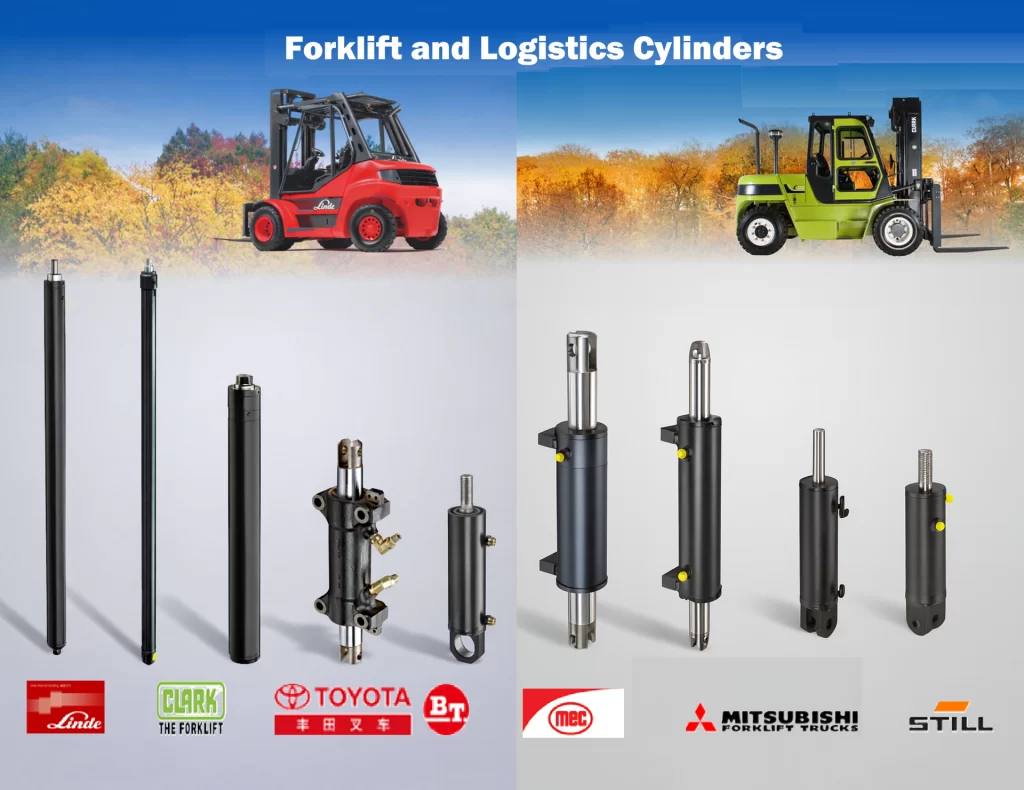

Key market – OEM Hydraulic Forklift Cylinders
Linde/Still forklift cylinders: More than 19 different sizes and strokes. Qualified for 25MPa (3600 psi) operating pressure
Clark forklift cylinders: More than 28 different sizes and strokes.
Jungheinrich forklift cylinders: More than 19 different sizes and strokes.
| Type | Matched Tonnage | Raised Height (m) | Operating Pressure (MPa) | Bore Diameter (mm) |
| Lift | 1 to 16 | 2 to 12 | 6 to 28 | 40 to 125 |
| Tilting | 1 to 16 | / | 6 to 28 | 50 to 160 |
| Steering | 1 to 16 | / | 9 to 16 | 50 to 160 |
| Side-Shifter | 4 to 10 | / | 16 to 20 | 50 to 100 |

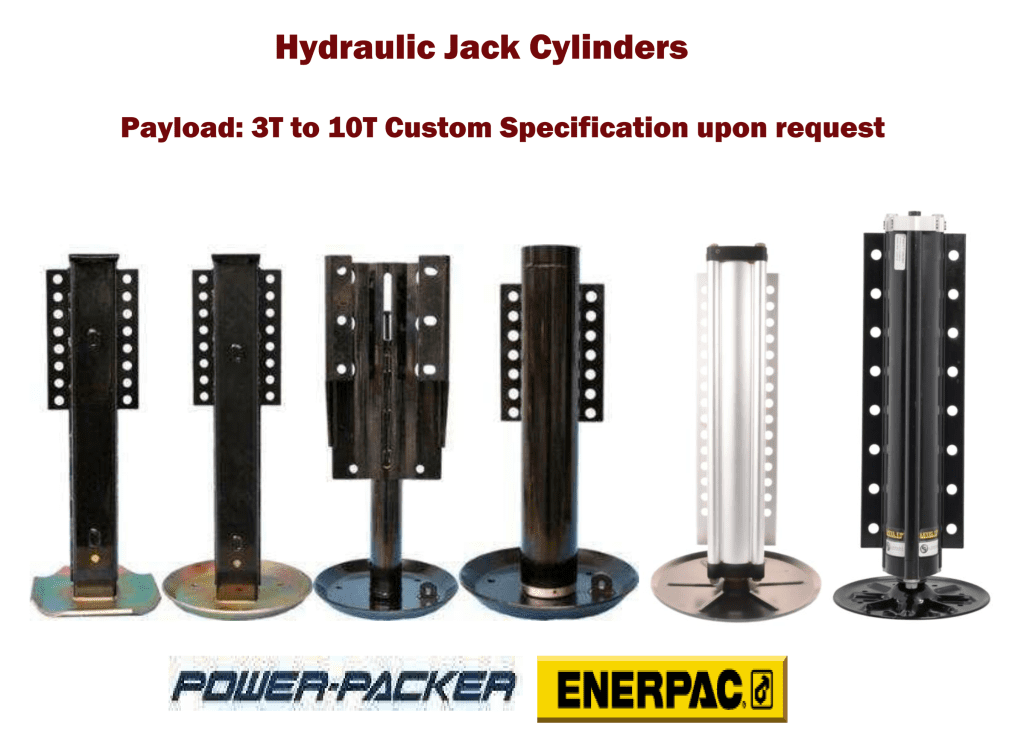

Key market – OEM Hydraulic Jack Cylinders
Single cylinder pay load is from 3T to 10T. No load height is up to 800mm. Custom specifications upon request
Cylinders used on Other markets – See Industries Served
Back to top of the page

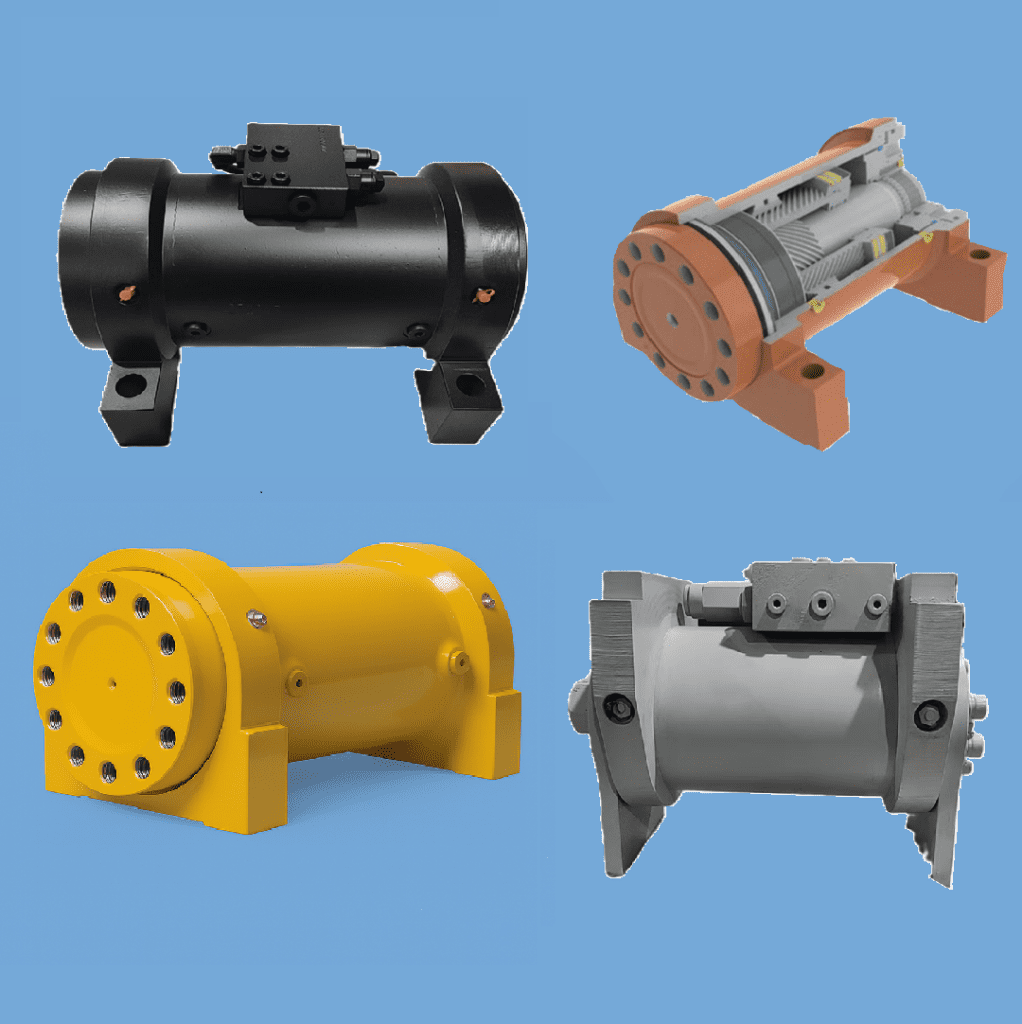

Rotary Actuators Overview
Rotary actuators comprise of five standard product offerings, ranging from 180 Nm to 24,000 Nm output drive torque at 21 MPa (3000 psi) differential pressure, with the following standard options:
- Output rotation angle: 180⁰ and 360⁰, custom angles available upon request
- Torque output form: Front flange, double flanges, or Shaft and spline options
- Mounting: Flange, foot or clevis mount
- Counterbalance valve: Available with or without counterbalance valve installed
- Seal options: Standard, high-temperature, or low-temperature options
Custom design tailored to specific applications are available upon request.
Check catalog page for details
Back to top of the page
Hydraulic Transmissions

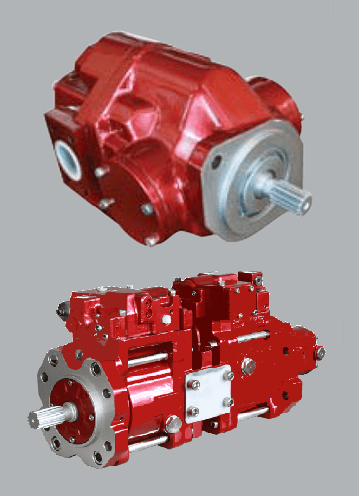

Pumps and Motors Overview
A wide range of hydraulic piston pumps and motors is available. The pumps and motors are designed on the basis of profound knowledge and experiences, and are manufactured under strict quality control system, ensuring high efficiency and reliability. Drop in replacements for A2F, A6V motors and A4V pumps are available.
Check catalog page for full product line information and sizing options
Back to top of the page
Planetary Gearbox Overview
A wide range of planetary gearboxes is available, with either rotating housings or rotating shafts, and with or without muti-disc brakes are available. The drives can be fitted with various hydraulic motors according to the customer requirements.
A Full line of drive units is widely used around the world. Custom configurations are also available.
Check catalog page for full product line information and sizing options
Back to top of the page
Hydraulic and Electric Winches
Winch Products Overview
Wide ranges of hydraulic and electric winches are available, with significant amount of patented technologies. They are systems with a combination of major in house components such as hydraulic motors, planetary gearboxes, integrated valve systems for counterbalancing, overload protection, speed and directional controls. They are widely used in mobile cranes, vehicle cranes, aerial platforms, tracked vehicle and also heavy mining, and construction machineries around the world.
Check catalog page for full product line information and sizing options
Back to top of the page
Electric Motors
Motor products Overview
A robust selection of motors used in a variety of application and industries including medical, packaging, industrial automation, oil & gas, aerospace and robotics applications. Custom solutions tailored to applications specific are also available. One of a kind applications, special prototypes, ruggedizing for extreme conditions, whatever customer needs, our expert design teams will deliver.
Key line of products:
- Brushless DC Motors and Gear Motors
- Brushless AC Servo Motors and Motor Controllers
- Rotary EMAs
- Resolvers
- Pump and Motor Assembly for Fuel Systems
- Generators and Starter Motors
- Auxiliary Power System
Check catalog page for full product line information and sizing options
Back to top of the page
Saw Blades
Saw Blades Overview
A comprehensive range of PCD (Polycrystalline Diamond), TCT (Tungsten Carbide) high-performance saw blades and other cutting tools are available with standard products or by custom specifications. The saws are designed to meet the demanding requirements of forestry operations, woodworking production, and metal cutting applications.
Check catalog page for full product line information and sizing options
Back to top of the page
Spares
Spare parts Overview

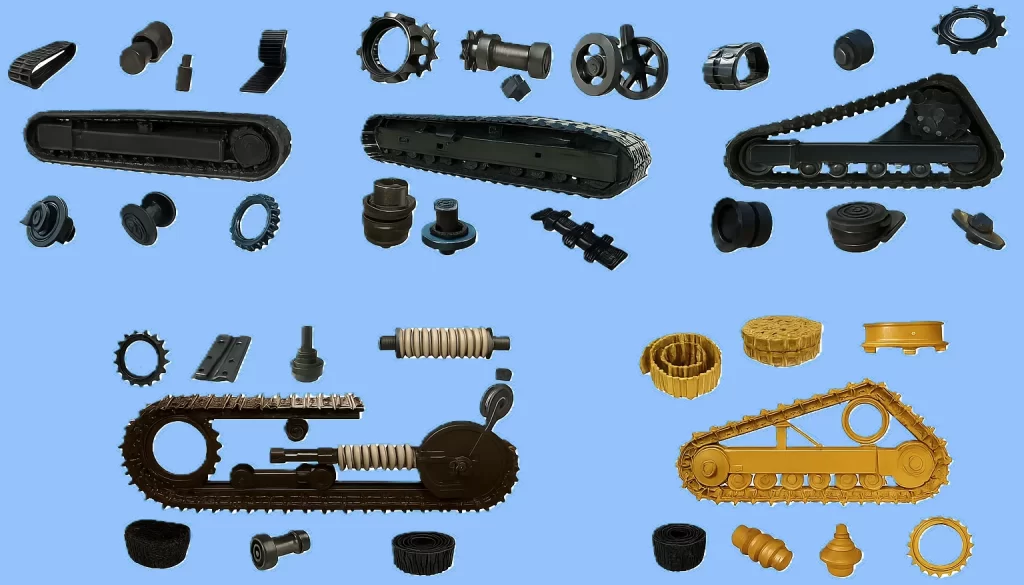

Wide range of undercarriage Parts and ground engaging tools for machineries from Komatsu, Caterpillar, Hitachi, Kobelco, Sumitomo, Kato, Hyundai, Doosan, Mitsubishi, Samsung and Volvo, and others are available. We have served customers over 80 countries for the past 15 years, consistently delivering satisfactory results.
Other spare parts
- OEM forklift cylinders
- OEM jack cylinders

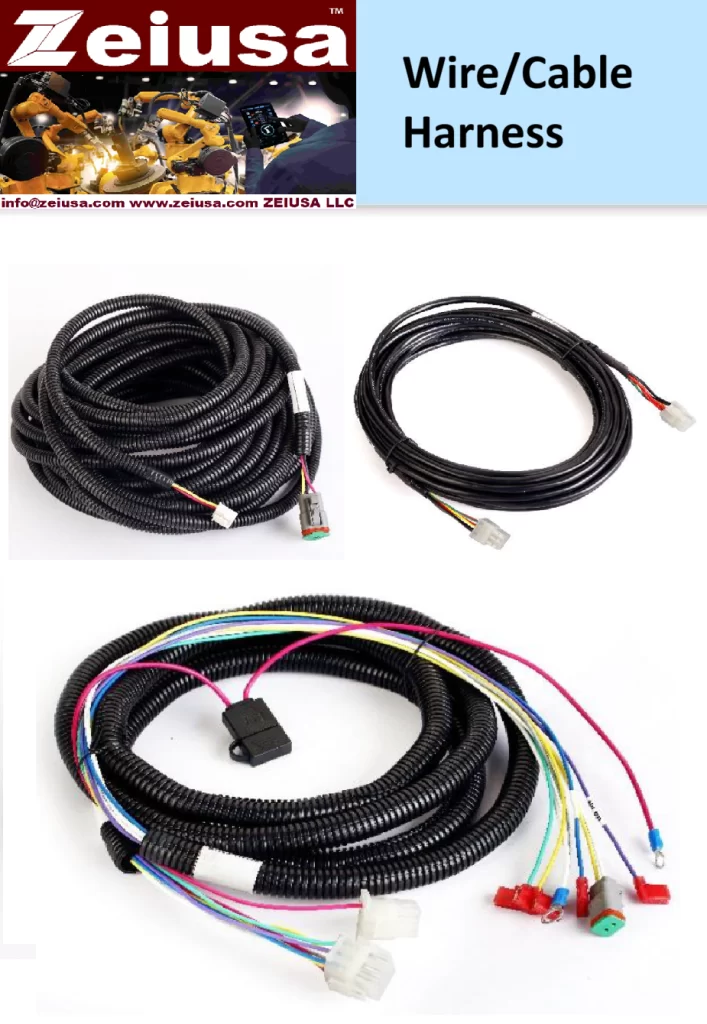

- Wiring harness – custom specifications
Check catalog page for full product line information and sizing options
